Executive Summary

• Standard Compliance: SAE AMS 2454 mandates specific composition and performance metrics for electroless nickel codeposited with PTFE.



• Process Capability: Micro Plating’s MicroLube process meets these strict requirements by maintaining a uniform dispersion of PTFE particles within the nickel matrix.



• Performance Verification: Compliance requires validating a coefficient of friction between 0.1 and 0.2 and confirming adhesion through rigorous testing.

Why Engineers Specify AMS 2454

Achieving consistent lubricity when applying electroless nickel PTFE coatings can be challenging. Particle agglomeration frequently causes surface irregularities that lead to component failure under strict aerospace standards. Meeting the stringent demands of SAE AMS 2454 while maintaining adhesion can be a difficult technical challenge.

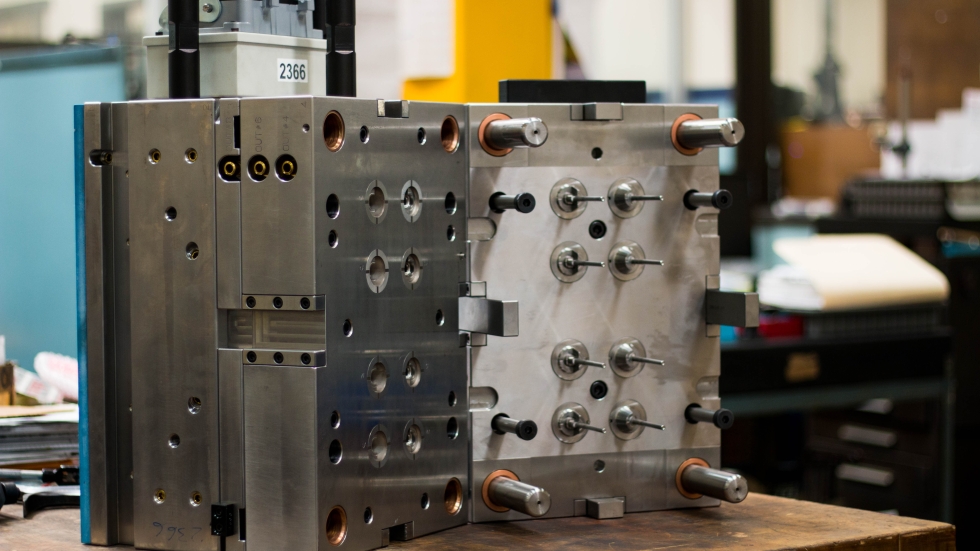

At Micro Plating, our proprietary MicroLube process ensures the PTFE particles remain evenly distributed throughout the nickel matrix. This specialized method delivers the reliable, low-friction surface necessary for critical mold and part applications.

Read on to learn how our solution meets the specific composition and performance metrics of AMS 2454.



Get a Quote for AMS 2454-Compliant Electroless Nickel PTFE Coating

What Does the AMS 2454 Specification Cover?

AMS 2454 establishes technical criteria for depositing a nickel-phosphorus matrix containing occluded PTFE particles on metal substrates.

Standardizing Composition and Functional Performance

The specification defines the required composition and properties of a composite coating for engineering applications:

• Mandating Matrix Integrity: The standard requires a nickel-phosphorus matrix containing occluded PTFE particles to ensure structural integrity.
• Broad Substrate Compatibility: The coating bonds effectively to steel, aluminum, and copper. This versatility ensures consistent surface performance across diverse alloy types.
• Functional Objectives: Reducing friction and providing mold release capabilities remain the primary functional goals for this composite material.

Preventing Operational Instability

Adhering to this standard prevents unexpected fluctuations in surface lubricity. Inconsistent plating can compromise the stability of the entire mechanical system.

How Does MicroLube Satisfy AMS 2454 Composition Standards?

MicroLube uses a proprietary dispersion method to meet AMS 2454 specifications. By codepositing PTFE uniformly within the nickel matrix, the process prevents particle clumping that would otherwise violate the standard.

Achieving Uniform Particle Dispersion

Conventional electroless nickel PTFE processes often struggle with particle agglomeration. However, the chemistry of MicroLube enables it to keep PTFE in a stable suspension and promote even distribution.

• Overcoming Agglomeration: MicroLube chemistry prevents particle clumping through controlled bath chemistry, ensuring consistent coverage across the entire surface.
• Precision on Edges: Controlling deposition rates reduces excessive build-up on corners, allowing complex geometries to maintain tolerances without post-plate machining.
• Matrix Integrity: The coating has a high-phosphorus matrix (11.5-12.5%), which supports the composite’s structural integrity while holding the PTFE in place.

Maximizing Component Lifespan in Tight Tolerances

Eliminating irregular edge build-up prevents seizing in precision assemblies. This consistency reduces the frequency of required maintenance.

What Are the Friction and Hardness Requirements of AMS 2454?

AMS 2454 mandates strict physical performance benchmarks. The specification relies on measurable properties rather than just chemical composition to ensure reliability.

Quantifying Physical Performance Metrics

MicroLube meets the physical standards defined by the specification through controlled deposition and optional post-plating treatments.

• Friction Coefficient: MicroLube yields a coefficient of friction (CoF) between 0.1 and 0.2. This range satisfies the standard’s requirement for dry lubrication.
• Heat-Treated Hardness: Baking the coating increases hardness to a typical value of 425 VHN. This modification balances wear resistance with the coating’s inherent lubricity.
• Corrosion Protection: The hydrophobic nature of PTFE allows the surface to repel water and oil. This characteristic enhances the substrate’s overall corrosion resistance.

Eliminating Mechanical Design Uncertainty

Quantifiable physical benchmarks predict how the component will behave under mechanical load. Meeting these specific metrics ensures the component functions correctly under stress.

How is AMS 2454 Compliance Verified?

Verifying compliance requires a series of destructive and non-destructive tests. These evaluations validate that thickness, adhesion, and corrosion resistance meet the specification.

Validating Thickness and Adhesion

Compliance requires strict adherence to testing protocols defined within the standard.

• Thickness Analysis: Technicians use X-ray fluorescence or cross-sectioning to verify that the deposit thickness falls between 0.00005 and 0.001 inches.
• Adhesion Verification: Confirming the bond strength between the substrate and the nickel-PTFE matrix involves bend tests or thermal shock procedures.
• Corrosion Resistance: Salt spray testing validates the coating’s ability to protect the substrate. The hydrophobic nature of PTFE further enhances this defense by repelling water and oil.

Verifying Reliability for Critical Parts

Successful completion of these tests validates the coating’s structural integrity and ensures full compliance with AMS 2454 standards.

Additional Questions / FAQ

Q: What is the typical thickness for AMS 2454 coatings?

A: Most applications require a thickness between 0.00005 and 0.001 inches, depending on the part’s tolerance and function.



Q: Can MicroLube be heat-treated?

A: Yes, heat treatment improves the hardness of the nickel matrix and increases the adhesion of the coating.



Q: What substrates are compatible with this process?

A: We successfully plate various metals, including steel, stainless steel, aluminum, brass, and copper.



Q: Does the PTFE affect the electrical conductivity?

A: PTFE is an insulator, so the composite coating will have higher electrical resistance than pure electroless nickel.



Q: Is this coating suitable for food processing equipment?

A: Electroless nickel with PTFE is often used in food processing due to its excellent release properties and corrosion resistance.

Achieving AMS 2454 Compliance with MicroLube

Meeting AMS 2454 requires precise control over the codeposition of PTFE within a nickel-phosphorus matrix. This specification ensures that electroless nickel composite solutions deliver consistent lubricity and corrosion resistance for demanding engineering environments.

At Micro Plating, our team utilizes the proprietary MicroLube process to achieve the uniform particle dispersion necessary for full compliance. We verify every performance metric through documented testing to guarantee the coating performs reliably in your specific application.
